Mechanical Battery Liquefied Propane Gas Filling Machine 220V 120Kg Weighing
Product Details:
| Place of Origin: | China |
| Brand Name: | XiangKang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | S-TCS-YG-SV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Carton Pack, Each Set Packed in 4 CTNS |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000000 Sets per month |
|
Detail Information |
|||
| Product Name: | Liquefied Propane Gas Filling Machine | Division: | 50g |
|---|---|---|---|
| Available Industrial: | Gas Station,energy Project,home Use,lpg Industry | Accuracy: | Class 3 |
| Pressure: | 0~1.6Mpa | Ex-proof Grade: | Ex Ib IICT4 Gb |
| Warranty: | 12 Months | Min. Weighing: | 2Kg |
| Max. Weighing: | 120Kg & 180Kg | Rated Power &Frequency: | 220V 50/60Hz |
| Gas: | Liquefied Gas,industrial Gas | Other Product: | Anti-cheating Gas Filling Machine |
| High Light: | Liquefied Propane Gas Filling Machine,220V Propane Gas Filling Machine,120Kg Weighing Gas Filling Machine |
||
Product Description
Product Description
LPG filling scales(Battery type filling machine and electronic power filling machine)
Our lpg filling scales with ATEX,CNEX,ISO9001:2015 certificate,high accuracy and explosion-proof,it will be automatically cut-off once it meet the set amount,equipment with long-lived large screen display,clear for reading,data query nd statistics refinement.
And another advantage,it has wireless module,for data collect and transfer to software.
Filling stations have a large amount of complex materials need records.
Zimbabwe popular mechanical battery Type 220V Liquefied propane gas filling machine big capacity 180KG.
Choosing a filling machine can be a very simple task. You could easily be able to find a filling machine that fits you by narrowing down your choices depending on what you want to be filled.Our LPG cylinder management system is designed specially to solve the problems according in smart & effective way, also low cost.

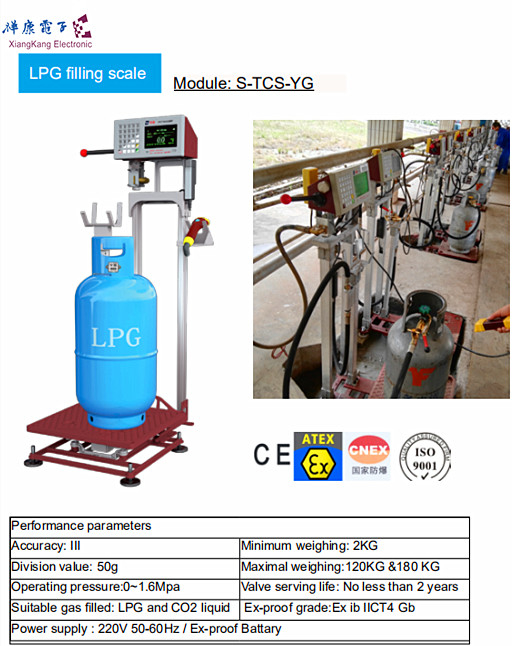

Here is the details about one hardware----LPG filling scale for the tracking system:
|
Performance parameters |
|
| Module | S-TCS-YG-SV-180 |
| Accuracy | III |
| Min. & Max. weighing | 2KG-120KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | 220V |
| Rated Frequency | 50/60Hz |
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3. After filling, the data will be transmitted into software system timely and automatically. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.

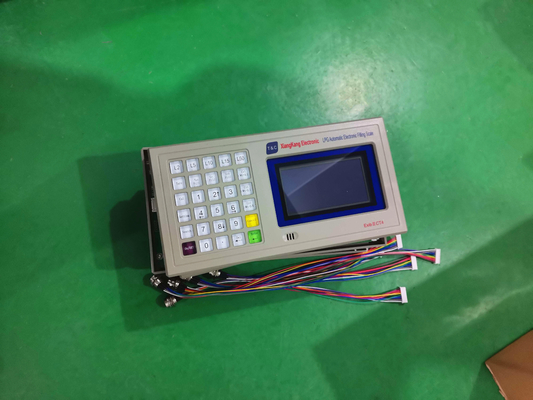

Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display,LED screen LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals.
Application in Industial Gas:
Application in LPG gas filling station.
|
Advantages |
|
|
1. |
Quantitative filling |
|
2. |
Automatic cut off |
|
3. |
Intrinsically safe explosion proof, safe and reliable |
|
4. |
One key setting |
|
5. |
Easy and convenient |
|
6. |
Friendly Keyboard |
|
7. |
One key operation |
|
8. |
Large screen OLED display |
