Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: Multi Type ATEX Liquefied Gas Filling Scales Rated Power &Frequency: 220V 50/60Hz
Division: 50g Available Industrial: Energy And Mining,Industrial Gas,LPG Industry,asset Management
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Certificate: ATEX,CNEX,ISO9001:2015
Weighing Capacity: 2Kg-180Kg Package: Standard Carton Box
Filling Speed: High Speed And Reliable Special Function1: Gas Anti-cheating Feature
Special Function2: Antomatically Peeled&remove The Inflated Weight Of Nozzel And Hose
High Light:

Liquefied Gas Filling Scales

,

Multi Type Gas Filling Scales

,

Lpg Station Gas Filling Scales

Product Description

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station


Product Description



XiangKang is a leader enterprise in LPG industry in China,we specialized in R&D,manufacture,and sales of liquefied gas filling scales,cylinber bar code tags for gas bottles tracking and management,also we supply gas filling software system,and cylinder tracking and management software platform.



Multi type ATEX liquefied gas filling scales high accuracy for lpg gas service station.


We are a professional manufacturer for LPG filling scale,Cylinder tags,cylinder tracking,automatic gas filling scale,electric filling scale,intelligent filling machine,interlocking filling scale,gas dispenser,Li-ion battery type filling scale,cooking gas filling,propane gas filling,bottled gas filling,explosive proof filling scale,liquefied petroleum gas filling machine,industrial gas filling,cylinder valves,lpg filling weighing scale,lpg filling weighing machine,Propane Fueling Stations,double nozzle filling scale,cylinder bar code tags,cylinder label,pet care tags,asset tracking bar code tags and etc.





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz




Interlocking Scanning Filling Process



Here are the process of filling bellow for clearer idea,very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 0



2. Open the valve(pressure handle) and start filling



Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 1



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.


Product Details Show

We do module design for our liquid petroleum gas filling machine.It will be much easier for maintenance.

The modules for filling scales are:Soldenoid valve, power box, hanging barrel,tools, display, LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 2



Products Application

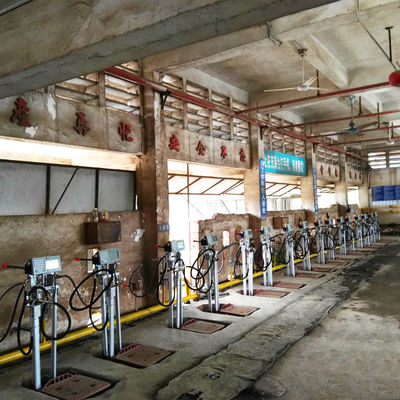

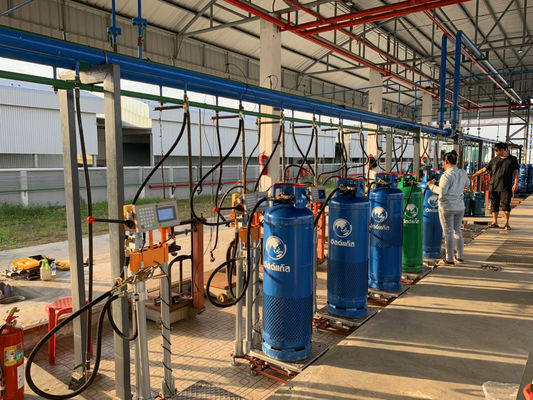

Our gas cylinder weighing scale have been well used of LPG refill,liquid chlorine refill,liquefied gas refill,CO2 gas filling,and other industrail gas refill,not only for home use cooking gas filling,also for BBQ cylinder gas filling,and some LPG gas plant.

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 3

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 4

Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 5





Products Advantages
  • ATEX,CNEX,ISO9001:2015 certificate
  • Electronic power type and battery type
  • Different filling module,net filling,total filling,standard filling type
  • Filling scale can be with different nozzles,double nozzles is available
  • Electronic power type and battery type
  • Wireless data transfer supported.
  • Gas filling software system is available.
  • And etc.

Expect lpg gas filling machines,we supply corresponding filling nozzles for different types of valves,such as filling nozzles for self-close valve,angle valve,camping valve and etc.



Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 6

  Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 7

Our Cooperators
   Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 8

Exhibitions
Our company attend several internation exhibitions related LPG and energy industry.Such as.
LPG WEST AFRICA 2019 FORUM & EXHIBITION-NIGERIA
ASIA PACIFIC LPG Expo 2019 VIETNAM
5th ASIA LPG SUMMIT 2018-BANGLADESH
LPG PROFESSIONAL FAIR JAPAN
And etc.
Multi Type Liquefied Gas Filling Scales For Lpg Gas Service Station 9
