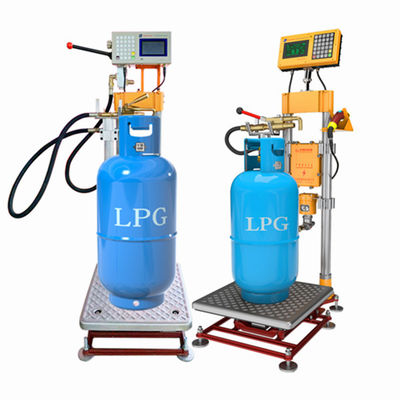

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Gas Cylinder Filling Machines Rated Power &Frequency: 220V 50/60Hz
Division: 50g Available Industrial: Energy And Mining,Industrial Gas,LPG Industry,asset Management
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Certificate: ATEX,CNEX,ISO9001:2015
Weighing Capacity: 2Kg-180Kg Package: Standard Carton Box
Filling Speed: High Speed And Reliable Special Function1: Gas Anti-cheating Feature
Special Function2: Antomatically Peeled&remove The Inflated Weight Of Nozzel And Hose
High Light:

Explosion Proof Cylinder Filling Machine

,

LPG Gas Cylinder Filling Machine

,

50g Division Cylinder Filling Machine

Product Description


Product Description



ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division.



XiangKang electronic company,which is a professional manufacturer,in Shanghai,China. We are the first leader solution for Chinese Bureaus of Quality and Technical Supervision about LPG cylinder tracking and management,interlocking automatic filling scale and government supervision network platform.

Following are our main products.
1. LPG gas filling machines
2. Gas filling software system
3. Metal-Ceramic Cylinder Barcode tags
4. Cylinder Tracking software system


Expect above items,we also supply lpg pump,lpg motor,lpg gas compressor,and gas leakage detector,and external liquid level gauge and other LPG related products.



Performance parameters:

Module:                        S-TCS-YG-SV-180

High accuracy:             III

Minimum weighing:      2kg
Maximum weighing:    180kg
Quality certification:     ATEX explosion proof,CNEX explosion proof,ISO9001:2015 quality certification
Division:                       50g
Pipe pressure:             normally 0.8Mpa
Operating pressure:     0-1.6Mpa
Suitable gas filled:        LPG,CO2
Explosion proof:           EX ib IICT4 Gb
Power supply:              220V
Rated Frequency:        50/60HZ
Display:                        Digital type





Interlocking Scanning Filling Process



Here are the process of filling bellow for clearer idea,very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 0



2. Open the valve(pressure handle) and start filling.If with electronic solenoid valve,the valve will be open automatically after cylinder be checked.



ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 1



3.When gas filling reaches to setting amount,the gas filling machine will automatically cut-off.And the data will be transmitted into software system. You could check from lpg gas software system,who did the operation,when,and which size of gas bottle have been filled with how many LPG propane gas,also you could do statistics and analysis.



4. The software system updates in real time and uploads the filling data to the network platform.


Product Details Show

Each type of filling machines with modules design​.It will be much easier for maintenance.

The modules for filling scales are:Soldenoid valve, power box, hanging barrel,tools, display, LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 2



Products Application

Our gas cylinder weighing scale have been well used of LPG refill,liquid chlorine refill,liquefied gas refill,CO2 gas filling,and other industrail gas refill,not only for home use cooking gas filling,also for BBQ cylinder gas filling,and some LPG gas plant.

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 3

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 4

ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 5





Products Advantages
  • ATEX,CNEX,ISO9001:2015 certificate
  • Electronic power type and battery type
  • Different filling module,net filling,total filling,standard filling type
  • Filling scale can be with different nozzles,double nozzles is available
  • Electronic power type and battery type
  • Wireless data transfer supported.
  • Gas filling software system is available.
  • And etc.

Expect lpg gas filling machines,we supply corresponding filling nozzles for different types of valves,such as filling nozzles for self-close valve,angle valve,camping valve and etc.



ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 6

  ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 7

Our Cooperators
   ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 8

Exhibitions
Our company attend several internation exhibitions related LPG and energy industry.Such as.
LPG WEST AFRICA 2019 FORUM & EXHIBITION-NIGERIA
ASIA PACIFIC LPG Expo 2019 VIETNAM
5th ASIA LPG SUMMIT 2018-BANGLADESH
LPG PROFESSIONAL FAIR JAPAN
And etc.
ATEX Explosion Proof LPG Gas cylinder filling machines 50g Division 9
