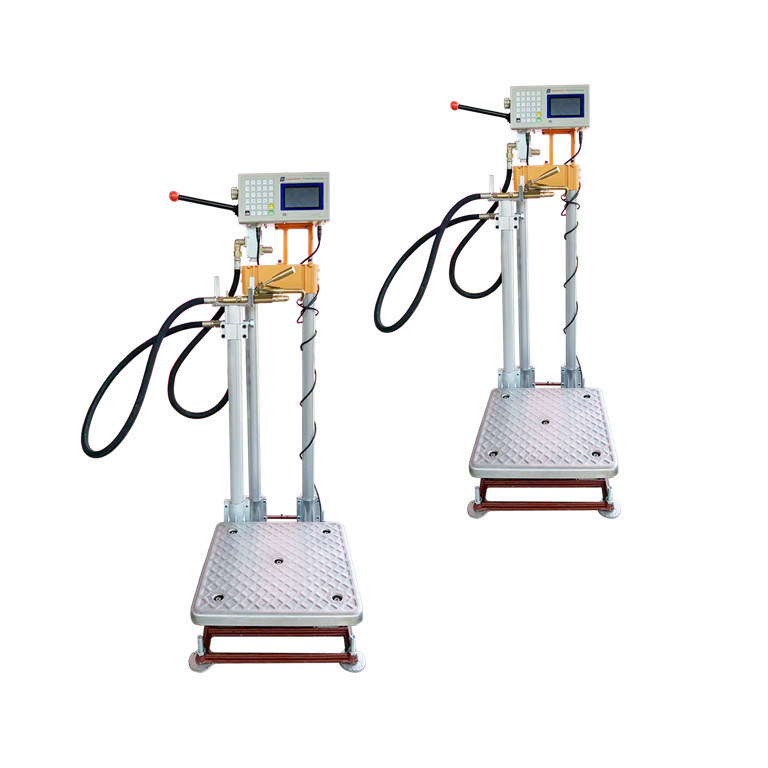

Wireless LPG Cylinder Filling Scale With Rechargeable Battery

Wireless LPG Cylinder Filling Scale With Rechargeable Battery

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV Battery

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Scale Battery Rated Power &Frequency: Li-ion Battery
Division: 50G Weighing Capacity: 2Kg-120Kg Or 2Kg-180Kg
Available Gas: LPG, Liquefied Gas Accuracy: III
Pressure: 0~1.6Mpa Anti Explosion Grade: Ex Ib IICT4 Gb
Pack: Carton Certification: ATEX,CNEX, ISO9001
Color: Orange & Silver
High Light:

Wireless LPG Cylinder Filling Scale


Rechargeable Battery Cylinder Filling Scale


50G Division Cylinder Filling Scale

Product Description

Product Description

ATEX Rechargeable Li-ion Battery Wireless LPG Cylinder Filling Scale


Li-ion rechargeable battery explosion proof filling scale easy operation anti-cheating. The scale with SIM card module is avaialble. It will capture filling information into a cloud server wirelessly, no need WIFI any more, much easier and convennient. It could tracking the filling data by mobile APP or opening website for tracking, even if the scales are in different filling station.


Filling data: filling time/date, tare weight, filled weight, total weight, unit price, and total price can be easy get from the gas filling software system.


The features of the gas filling scale:

  • 16 keys in the keypad board convenient to control start, stop and drive lock functionality;
  • Easy to operate, fast filling, one operator can operate 2~3platform balance;
  • When power failure, saving data to ensure safe and reliable statistical data;
  • Data query and statistics refinement, smart query and statistical methods;
  • By the national testing center of explosion-proof electrical testing, with legal qualifications;
  • Setting the upper and lower limits of the weight of empty bottles to ensure the safety of the filling;
  • Automatic eliminate the effect of tensional force of weight of nozzle, hose on filling accuracy;
  • With some concept of humane function, such as : mulling calibration, query, select the menu of operations.


Performance parameters
Module S-TCS-YG-SV Battery
Accuracy III
Min. & Max. weighing 2KG-120KG or 2KG-180KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof  Ex ib IICT4 Gb
Power Supply Li-ion battery
Color Orang&Silver


Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

Wireless LPG Cylinder Filling Scale With Rechargeable Battery 0


Products Application

Application photo from one of our clients:

Wireless LPG Cylinder Filling Scale With Rechargeable Battery 1

Interlocking Scanning Filling Process


The process of filling:


1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Wireless LPG Cylinder Filling Scale With Rechargeable Battery 2


2. Open the valve(pressure handle) and start filling


Wireless LPG Cylinder Filling Scale With Rechargeable Battery 3


3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.


4. The software system updates in real time and uploads the filling data to the network platform.



1. What is your MOQ?
Answer: 1 unit

2. If I want a good discount, how many LPG filling scales do I need to purchase?
Answer: pls contact vickie@czxkdz.com for more details

3. What's the way to transport the LPG filling scale?
Answer: By air or by sea as request.

4. Do you have after-sales service in your company?
Answer: Yes. When the customer receives the LPG filling scale, we will guide the customer to install the LPG filling scale.


5. If I have my own freight forwarder in China, can you send the LPG filling scale to my agent?

Answer: It's OK, we will arrange and deliver the goods as request.


6. Is filling data tracking available?

Answers: Yes, availble. Pls feel free to contact if interested in.


7. Is it suitable for CO2?

Answers: Yes, it is designed for liquefied gas(liquid industrial gas, LPG,etc.)
