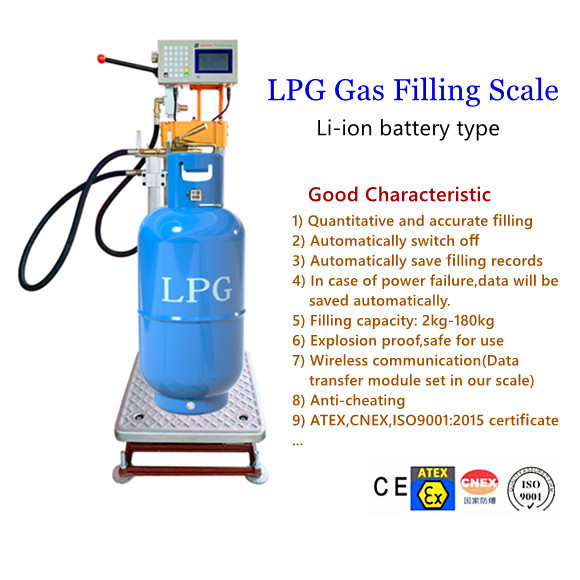

Explosion Proof Cylinder Filling Scale For Energy Mining
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangkang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | S-TCS-YG-SV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Carton Pack, Each Set Packed in 4 CTNS |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000000 Sets per month |
|
Detail Information |
|||
| Product Name: | LPG Gas Cylinder Filling Machine | Rated Power &Frequency: | 220V 50/60Hz |
|---|---|---|---|
| Division: | 50g | Available Industrial: | Energy And Mining,Industrial Gas,LPG Industry,asset Management |
| Accuracy: | Class 3 | Pressure: | 0~1.6Mpa |
| Ex-proof Grade: | Ex Ib IICT4 Gb | Certificate: | ATEX,CNEX,ISO9001:2015 |
| Weighing Capacity: | 2Kg-180Kg | Package: | Standard Carton Box |
| Filling Speed: | High Speed And Reliable | Special Function1: | Gas Anti-cheating Feature |
| Special Function2: | Antomatically Peeled&remove The Inflated Weight Of Nozzel And Hose | ||
| High Light: | Explosion Proof Cylinder Filling Scale,LPG Gas Cylinder Filling Scale,Energy Mining Cylinder Filling Scale |
||
Product Description
XiangKang is a leader enterprise in LPG industry in China,we specialized in R&D,manufacture,and sales of liquefied gas filling scales,cylinber bar code tags for gas bottles tracking and management,also we supply gas filling software system,and cylinder tracking and management software platform.
2KG-180KG Explosion Proof CLi-ion battery type scale wiresless data transfer anti-cheating.
We are a professional manufacturer for LPG filling scale,Cylinder tags,cylinder tracking,automatic gas filling scale,electric filling scale,intelligent filling machine,interlocking filling scale,gas dispenser,Li-ion battery type filling scale,cooking gas filling,propane gas filling,bottled gas filling,explosive proof filling scale,liquefied petroleum gas filling machine,industrial gas filling,cylinder valves,lpg filling weighing scale,lpg filling weighing machine,Propane Fueling Stations,double nozzle filling scale,cylinder bar code tags,cylinder label,pet care tags,asset tracking bar code tags and etc.
|
Performance parameters |
|
| Module | S-TCS-YG-SV-180 |
| Accuracy | III |
| Min. & Max. weighing | 2KG-120KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | 220V |
| Rated Frequency | 50/60Hz |
Here are the process of filling bellow for clearer idea,very simple to operate according the steps:
1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
We do module design for our liquid petroleum gas filling machine.It will be much easier for maintenance.
The modules for filling scales are:Soldenoid valve, power box, hanging barrel,tools, display, LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals
Our gas cylinder weighing scale have been well used of LPG refill,liquid chlorine refill,liquefied gas refill,CO2 gas filling,and other industrail gas refill,not only for home use cooking gas filling,also for BBQ cylinder gas filling,and some LPG gas plant.
- ATEX,CNEX,ISO9001:2015 certificate
- Electronic power type and battery type
- Different filling module,net filling,total filling,standard filling type
- Filling scale can be with different nozzles,double nozzles is available
- Electronic power type and battery type
- Wireless data transfer supported.
- Gas filling software system is available.
- And etc.
