ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery

ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV 120 Battery

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Scale Battery Rated Power &Frequency: Li-ion Battery
Division: 50G Min. Weighing: 2Kg
Max. Weighing: 120Kg Available Gas: LPG, Liquefied Gas
Accuracy: III Pressure: 0~1.6Mpa
Anti Explosion Grade: Ex Ib IICT4 Gb Pack: Carton
Certification: ATEX,CNEX, ISO9001 Color: Orange & Silver
High Light:

ATEX LPG Cylinder Filling Scale

,

Division 50G Cylinder Filling Scale

,

1.6Mpa LPG Cylinder Filling Scale

Product Description

Product Description

ATEX LPG Filling Scale Li-ion Battery Division 50G



It could apply for liquefied gas, such LPG gas, CO2, O2,etc. industrial gas...



The advantages of the filling scale machine:

  • Easy to operate, fast filling, one operator can operate 2~3platform balance;
  • 16 keys in the keypad board convenient to control start, stop and drive lock functionality;
  • Data query and statistics refinement, smart query and statistical methods;
  • When power failure, saving data to ensure safe and reliable statistical data;
  • Setting the upper and lower limits of the weight of empty bottles to ensure the safety of the filling;
  • Automatic eliminate the effect of tensional force of weight of nozzle, hose on filling accuracy;
  • By the national testing center of explosion-proof electrical testing, with legal qualifications;
  • With some concept of humane function, such as : mulling calibration, query, select the menu of operations.



Performance parameters
Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-180KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof  Ex ib IICT4 Gb
Power Supply Li-ion battery
Color Orang&Silver



Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery 0



Products Application

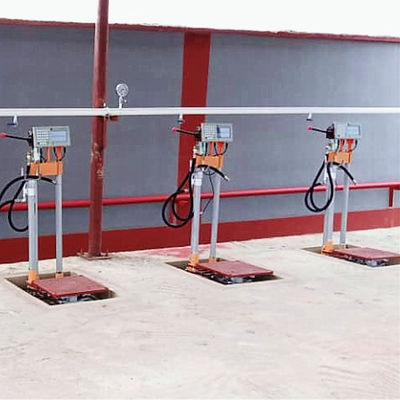

Application photo from one of our clients:

ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery 1

Interlocking Scanning Filling Process



The process of filling:



1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery 2



2. Open the valve(pressure handle) and start filling



ATEX LPG Cylinder Filling Scale Division 50G With Li Ion Battery 3



3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.



FAQ

1. What is your MOQ?
Answer: 1 unit


2. If I want a good discount, how many LPG filling scales do I need to purchase?
Answer: pls contact vickie@czxkdz.com for more details


3. What's the way to transport the LPG filling scale?
Answer: By air or by sea as request.


4. Do you have after-sales service in your company?
Answer: Yes. When the customer receives the LPG filling scale, we will guide the customer to install the LPG filling scale.



5. If I have my own freight forwarder in China, can you send the LPG filling scale to my agent?

Answer: It's OK, we will arrange and deliver the goods as request.



6. Is filling data tracking available?

Answers: Yes, availble. Pls feel free to contact if interested in.
