220V 180KG Capacity Cylinder Filling Scale Explosion Proof
|Place of Origin:||China|
|Certification:||ATEX, CNEX, ISO9001:2015|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Carton Pack, Each Set Packed in 4 CTNS|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||1000000 Sets per month|
|Product Name:||LPG Propane Gas Refilling Machine||Rated Power &Frequency:||220V 50/60Hz|
|Division:||50g||Available Industrial:||Home Cooking,Gas Station,lpg Gas Project,gas Plant,energy Project|
|Ex-proof Grade:||Ex Ib IICT4 Gb||Warranty:||12 Months|
|Min. Weighing:||2Kg||Max. Weighing:||120Kg & 180Kg|
|Filling Model:||Net Filing,Gross Filling,Standard Filling||Gas Type:||Industrial Liquid Oxygen,liquified Gas,industrial Gas,liquid Chlorine,CO2|
|Scale Type:||Automatical Electronic Power Type,Li-ion Battery Type||Filling Speed:||High Speed|
180KG Capacity Cylinder Filling Scale,
Explosion Proof Cylinder Filling Scale,
High Speed Cylinder Filling Scale
XiangKang is the leader company in lpg industry.Our main business is lpg filling scales manufacture and permanent barcode manufacturer,also we supplied reliable software system to do cylinder management.

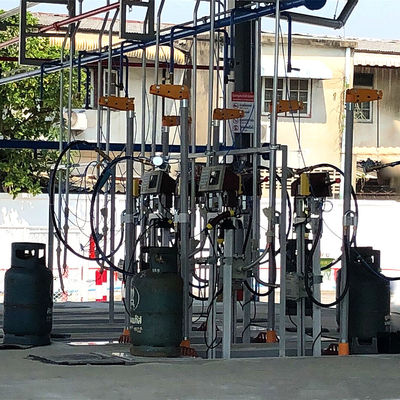

220V and 180KG capacity explosion Proof LPG Propane Gas filling service station in Thailand.
Our lpg propane filling scale have been well used for Liquefied Petroleum Gas,CO2 gas,liquid chlorine filling.
It has been widely accepted in Africa,South-East and South America market,such as Nigeria, Kenya,Thailand and etc.
The special of our LPG filling scale is that there is wireless device behind the display,it can collect and transfer filling datas to gas fillling software sytem timely and automatically.It will highly improve your filling and statistic efficiency.
Our products have been to send Africa,Southeast Asia,Middle East and some other areas for years.
Here is the details about one hardware----LPG filling scale for the tracking system:
|Min. & Max. weighing||2KG-120KG|
|Certificates||CNEX, ATEX, ISO9001|
|Ex-proof||Ex ib IICT4 Gb|
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
