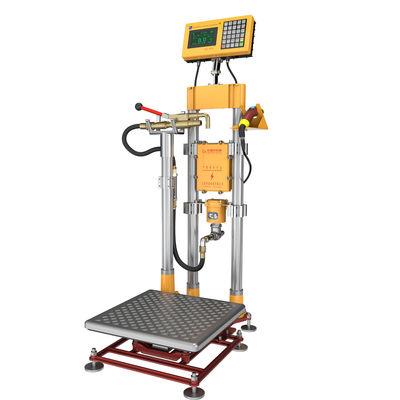

60Hz 180kg Division 50g LPG Cylinder Filling Scale
|Place of Origin:||China|
|Certification:||ATEX, CNEX, ISO9001|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Carton Pack, Each Set Packed in 4 CTNS|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||1000000 Sets per month|
|Product Name:||LPG Filling Scale Industrial Gas||Rated Power &Frequency:||220V 50/60Hz|
|Division:||50G||Available Industrial:||Energy And Mining, Industrial Gas|
|Ex-proof Grade:||Ex Ib IICT4 Gb||Approval:||ATEX|
|Min. Weighing:||2Kg||Max. Weighing:||180Kg|
LPG Cylinder Filling Scale,
Division 50g Cylinder Filling Scale,
180kg Cylinder Filling Scale
In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....
There are the requirements to make it clearer and easier to manage.
Our LPG cylinder management system is designed to solve the problems according in smart and effective way.
And also competitive investment.
Here is the details about one hardware----LPG filling scale for the tracking system:
|Min. & Max. weighing||2KG-120KG|
|Certificates||CNEX, ATEX, ISO9001|
|Ex-proof||Ex ib IICT4 Gb|
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,
scale platform, scanner and holder, seals
Application in Industrial Gas:
- Quantitative filling
- Automatic cut off
- Intrinsically safe explosion proof, safe and reliable
- One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display
Why should you need automatic filling scale?
Filling stations have a large amount of complex materials need records.Our filling scale can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.
Here are the benefits:
