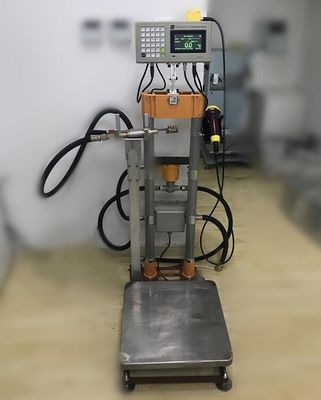

Explosion Proof 180kg LPG Gas Refilling Machine

Explosion Proof 180kg LPG Gas Refilling Machine

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Scale New Type Chain Type Rated Power &Frequency: 220V 50/60Hz
Division: 50G Application Industrial: LPG Gas, Industrial Gas
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Warranty: 12 Months
Capacity: 2Kg-180Kg OEM: Available
High Light:

LPG Gas Refilling Machine


Explosion Proof Cylinder Filling Scale


180kg Cylinder Filling Scale

Product Description

Products Advantages

The advantages of the filling scale machine:

Quantitative filling,Automatic cut off, Intrinsically safe explosion proof, safe and reliable

One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display


Wireless data transmission optional. It can real time monitor the filling details, check the filling amount, and check filling data of important customers.


Scanning filling, scanning gas cylinder bar code. It refuses to fill substandard gas cylinder. It has function to refuse to fill the bottle which is lower than the lower limit bottles and which fills to the upper limit(to prevent accidental overloading.

Automatic tare of the filling gun , and bottle weight, filling operation convenient

Product Description

In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....Filling stations or plants have a large amount of complex materials need records.There are the requirements to make it clearer and easier to manage.


An automatic filling scale is an important part of many industrial weighing applications. Such cyilnders need to be accurated filled, or emptied the liquefied gases...


Our LPG cylinder management system is designed specially to solve the problems according in smart & effective way, also low cost.

The filling scale can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.


Here is the details about the hardware----LPG filling scale for the tracking system:



Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz



Interlocking Scanning Filling Process



Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:


1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Explosion Proof 180kg LPG Gas Refilling Machine 0


2. Open the valve(pressure handle) and start filling


Explosion Proof 180kg LPG Gas Refilling Machine 1


3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.


4. The software system updates in real time and uploads the filling data to the network platform.



Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

Explosion Proof 180kg LPG Gas Refilling Machine 2


Products Application


Widely used in gas stations:

Explosion Proof 180kg LPG Gas Refilling Machine 3
