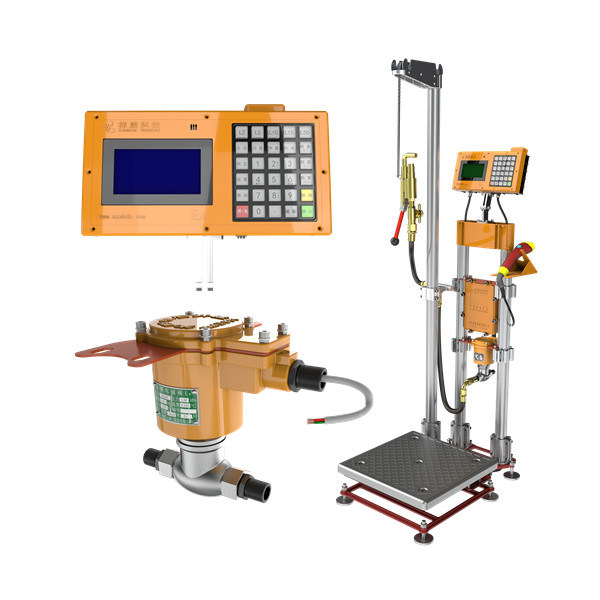

240V Gb One Key Display Cylinder Filling Scale
|Place of Origin:||China|
|Certification:||ATEX, CNEX, ISO9001|
|Model Number:||S-TCS-YG-SV 120&180|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Standard Carton Pack, Each Set Packed in 4 CTNS|
|Delivery Time:||5-8 work days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||1000000 Sets per month|
|Product Name:||LPG Gas Filling Scale Chained Model||Rated Power &Frequency:||110-240V 50/60Hz|
|Division:||50G||After-sale Service:||On-line Support|
|Ex-proof Grade:||Ex Ib IICT4 Gb||Display:||One Key|
|Min. Weighing:||2Kg||Max. Weighing:||120 &180Kg|
|Drive Type:||Electric||Warranty:||1 Year|
CNEX Cylinder Filling Scale,
50g Cylinder Filling Scale,
CNEX auto gas filling machine
Xiangkang Electronic provide you a tool to let you monitor and weigh the contents of gas cylinders when you need to measure your amount of liquefied gas or other materials stored in cylinders, bottles. These scales are ideal for weighing materials stored in cylinders, pails and tanks of all kinds due to the intelligent design.
Filling stations have a large amount of complex materials need records.
Our filling scale can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.
Welcome for more detailed information when you are in need.
|Min. & Max. weighing||2KG-120KG|
|Certificates||CNEX, ATEX, ISO9001|
|Ex-proof||Ex ib IICT4 Gb|
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
