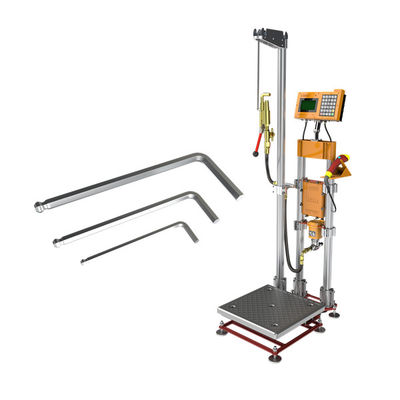

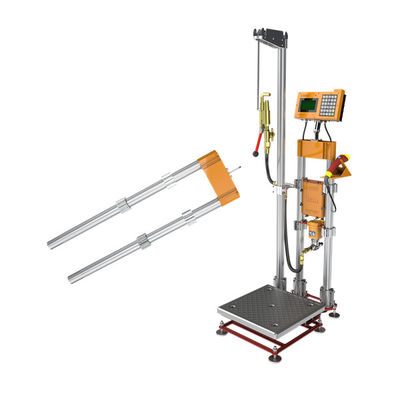

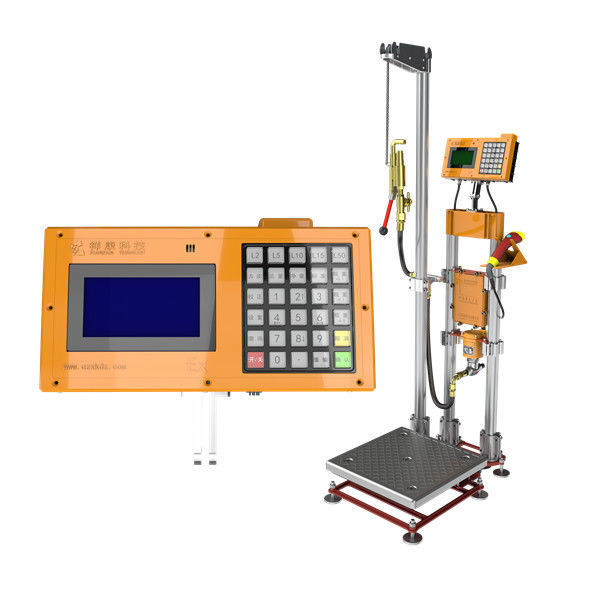

240V LCD Display Electric 1.6Mpa Cylinder Filling Scale
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangkang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | S-TCS-YG-SV 120&180 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Carton Pack, Each Set Packed in 4 CTNS |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000000 Sets per month |
|
Detail Information |
|||
| Product Name: | LPG Gas Filling Scale | Rated Power &Frequency: | 110-240V 50/60Hz |
|---|---|---|---|
| Division: | 50G | Available Industrial: | Energy And Mining, Industrial Gas |
| Accuracy: | Class 3 | Pressure: | 0~1.6Mpa |
| Ex-proof Grade: | Ex Ib IICT4 Gb | Display: | Large LCD Display |
| Min. Weighing: | 2Kg | Max. Weighing: | 120 Or 180Kg |
| Drive Type: | Electric | Warranty: | 1 Year |
| High Light: | 1.6Mpa Cylinder Filling Scale,Xiangkang Cylinder Filling Scale,lpg refilling machine |
||
Product Description
If you have a company that requires filling bottles or pouches with food, beverages, or other substances, you have probably already started looking for the best filling machines available.
There are many different kinds of filling machines for sale these days, and the best options for you depend on your company’s needs.
Naturally you will need scales to go with your filling stations, but first make sure you have the correct machine.
Liquid filling machines can handle all manner of liquids, including oil and beverages.
Xiangkang Electronic provide you a tool for monitoring and weighing the contents of gas cylinders when you need to measure your amount of liquefied gas or other material stores in cylinders, bottles.
These scales are ideal for weighing materials store in cylinders, pails and tanks of all kinds due to the intelligent design.
|
Performance parameters |
|
| Module | S-TCS-YG-SV-180 |
| Accuracy | III |
| Min. & Max. weighing | 2KG-120KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | 220V |
| Rated Frequency | 50/60Hz |
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.

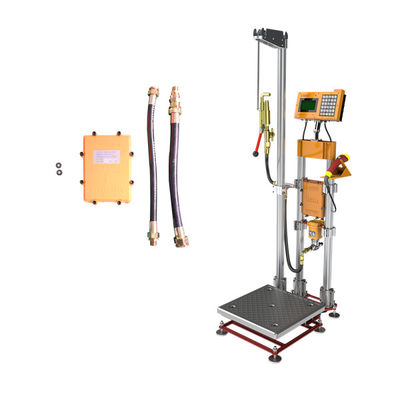

Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,
scale platform, scanner and holder, seals
Application in Industrial Gas:
- Quantitative filling
- Automatic cut off
- Intrinsically safe explosion proof, safe and reliable
- One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display
Filling stations have a large amount of complex materials need records.
Our filling scale can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.
