ISO9001 5m CT6 Gb Four Wire LPG Tank Level Gauge

ISO9001 5m CT6 Gb Four Wire LPG Tank Level Gauge

Product Details:

Place of Origin: China
Brand Name: Shendoo
Certification: ATEX, CNEX, ISO9001
Model Number: Shendoo1688

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: $1,800.00 - $3,300.00/ Set
Packaging Details: Standard Export Carton Pack
Delivery Time: 25 work days
Payment Terms: L/C, T/T, Western Union
Get Best Price Contact Now

Detail Information
Power: Electronic Usage: Level Sensor
Measuring Range: 3m, 5m, 10m 15m, 20m Application: Chemical
Ex-proof Grade: Ex DII CT6 Gb
Highlight:

5m LPG Tank Level Gauge

,

CT6 LPG Tank Level Gauge

,

CT6 tank liquid level gauge

Product Description

Specification



LPG Tank Level Gauge Ultrasonic Liquid Level With Explosion Proof

  Specifications Note
Range 0.2-3m; 0.5-6m; 1-10m;
Accuracy 0.5%F.S.; 0.2%F.S.; 0.1%F.S.
Display resolution 1mm
Unit mm
Display 5 digit LED Direct display
Output error Not over ±0.1% display value Error between output value and display value
Allowable migration -9999mm~+9999mm
Tank pressure No limitation
Sensor operating temp. -50~70℃; -30~120℃; 0~250℃ Similar to temp. of tank wall
Transmitter operating temp. -40~60℃
Relative humidity 0-95%
Explosion proof class Ex dII CT6 Gb
Corrosion proof class WF1
Ingress protection IP67
Wiring system Four-wire system, two-wire system
Power supply DC24(±20%) V/10W, AC220(±20%) V/10W
Output Isolated 4-20mA/HART/ Modbus/ TCP industrial ethernet Max. output distance 1000m
Output load Default load 250Ω Max. load 1000Ω
Cable between sensor and transmitter 10m Could be extended to 30m
Cable pipe DN20(6’) galvanized pipe, G3/4’’ external thread
Pipe connection Magnetic adsorption
Connection M20x1.5 internal thread, could be changed to G3/4’’ or 1/2’’NPT external thread
Weight 3.7kg
Tank wall thickness 0-30mm
Package dimension L 430mm x W 380mm x H 280mm
Note 1. In case that level is lower than min. range of the product, display will show “LO” (display content may change according to different setting)
2. Analog output is isolated with transmitter circuit by 750V voltage. It is also isolated with DC24V power by a voltage higher than 1500V. Default load of analog output is 250Ω, and max. load is 1000Ω.
3. Sensor and calibration probe are with strong magnetic rings to ensure adsorbability over 80kg.

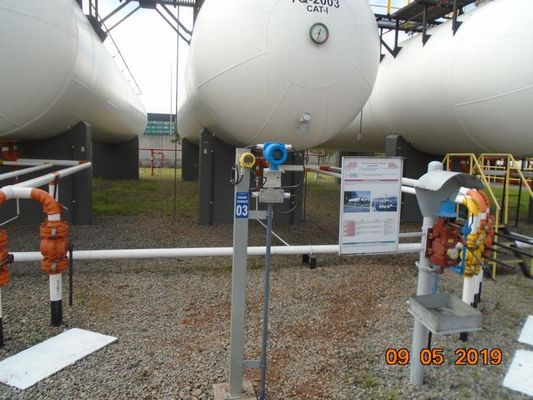

ISO9001 5m CT6 Gb Four Wire LPG Tank Level Gauge 0

Product Applications

Applications

LPG tanks
liquid ammonia tanks
liquid chlorine tanks
liquid propene tanks
liquid propane tanks
