Metal Ceramic Gas Cylinder Tag Tracking With Bar Code Technology
Product Details:
| Place of Origin: | Changzhou, China |
| Brand Name: | XiangKang |
| Certification: | ISO9001:2015,CNEX,ATEX |
| Model Number: | Gas Cylinder Tracking Solution with Bar code Technology |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton Pack |
| Delivery Time: | in a week |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Product Name: | Metal Ceramic Bar Code Tag | Life Time: | 20 Years Outdoor |
|---|---|---|---|
| Hige Temperature Resistance: | 800℃ | Anti-UV: | Yes |
| Chemical Resistance: | Yes | Tag Dimension: | 35*53*1.2 Mm |
| Color: | Black And White | Water Resistance: | Yes |
| Anti-Burning: | Yes | Material: | Metal Ceramic |
| Oil Resistance: | Yes | Heat Resistance: | Yes |
| High Light: | Tracking Gas Cylinder Barcode,Metal Ceramic Cylinder Tag,Temperature Resistance Gas Cylinder Bar Code |
||
Product Description
The headache of gas cylinder lossing and misplaced
Gas cylinder manufacturer send out gas cylinders to gas cylinder distributor.Cylinder distributors do gas filling in gas station.
Even they don’t know the status of their cylinder,if it is legal or illegal,and if it is expired or not,they only could judge the cylinder from outlook.
Now,they realize this problem,and this the headache of them.
They know how important it is to track the contents of the cylinder as well as the cylinder itself. A lost cylinder brings loss to distributors, a expired one brings dangers, and a misplaced one brings an unhappy customer.
Bar code tag's Performance
What we could do it do solve the headache of gas cylinder lossing and misplaced.
We use durable cylinder tag,which could be used outdoor for more than 20 years.
It could be design with one-dimensional code only,or QR code only,or with both one-dimensional code and QR code.
This kind of durable tag use corrosion resistant metal as matric and integrate barcode information(series No.,QR code)with cermaic galze when the tag goes into the high temperature oven.
The tag has following nice performance.
1. Big temperature resistance range,-40℃ to 800℃
2. Chemical corrosion resistance
3. Scratch resistance.This is the advantage compare with paper tag or laser tag.Even you use an knife to scratch the code on the tag,it can not be damaged.
4. Long life time.
5. UV protection
6. Good bendability.
Bar code tag's Characteristic
| Characteristic | |
| Item | Barcode |
| High Temperature Resistance | 800℃ |
| Low Temperature Resistance | -40℃ |
| Chemical Corrosion | Yes |
| Color | White Base, Black Barcode |
| UV Resistance | Yes |
| Scrap with An Art Knife Allowed | Scraping 10 times without damage |
| Unbreakable | Little bend is available |
| Life Time | At Least 20 Years |
Bar code tag's Function

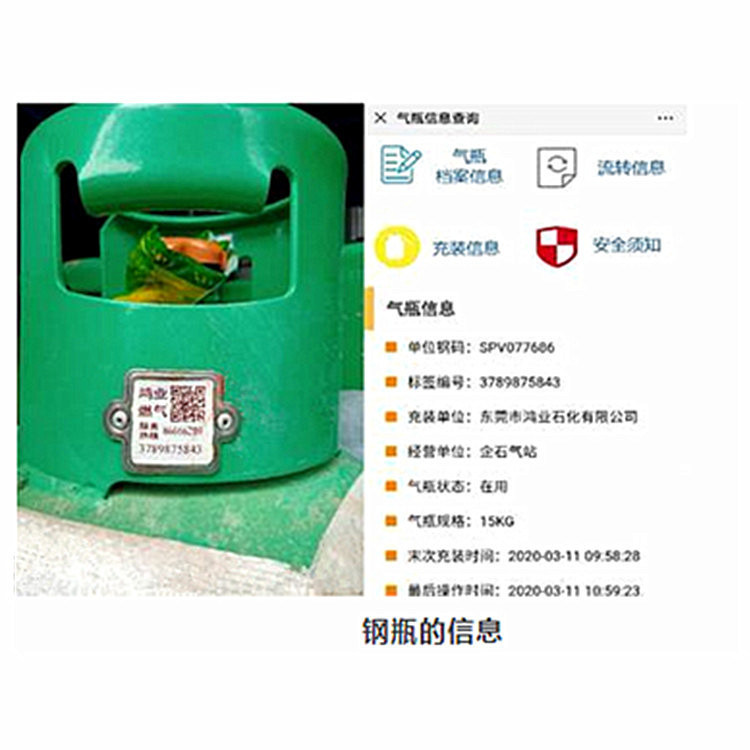

e.g. Display information on APP about cylinder information
Benefits of using metal ceramic bar code tag
With our barcode tag and gas cylinder tracking software system,could realize:
Cylinder bar code tag application
Applications for tracking LPG cylinders, and other industries
Installation for cylinder bar code tag
Three methods:
- For New Cylinder by Welding joint
- For old cylinder by drilling and riveting
- Adhesive glue or 3M glue
Explanation of the Cylinder tracking system
The hardwares demanded for the system:
To track gas cylinders ,it needs.
Hardware- durable Bar code tag
Explosion-proof type PDA
Smart phone
Wireless data base
Cloud server
Software- Cylinder tracking platform
Cylinder tracking APP
Our cooperator
Background - Why should we manage our gas cylinders?
Because cylinders are your precious assets.
