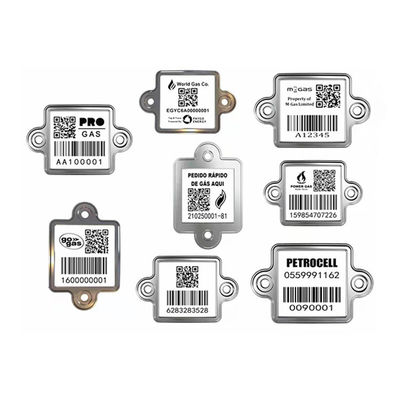

Metal Ceramic Bar Code Tag For Liquid Gas Cylinder Tracking High Temperature Resistance
Product Details:
| Place of Origin: | Changzhou, China |
| Brand Name: | XiangKang |
| Certification: | ISO9001:2015,CNEX,ATEX |
| Model Number: | Metal ceramic bar code tag |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton Pack |
| Delivery Time: | in a week |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Product Name: | Metal Ceramic Bar Code Tag | Life Time: | 20 Years Outdoor |
|---|---|---|---|
| Hige Temperature Resistance: | 800℃ | Anti-UV: | Yes |
| Chemical Resistance: | Yes | Tag Dimension: | 35*53*1.2 Mm |
| Color: | Black And White | Water Resistance: | Yes |
| Anti-Burning: | Yes | Material: | Metal Ceramic |
| Oil Resistance: | Yes | Heat Resistance: | Yes |
| High Light: | Metal Ceramic Code Label,High Temperature Resistance Barcode Tag,Liquid Gas Tracking Ceramic Tag |
||
Product Description
Why choose XiangKang electronic?
XiangKang is the first leader solution supplier for Chinese Bureaus of Quality and Technical Supervision about LPG cylinder tracking and management,interlocking automatic filling scale and government supervision network platform.
XiangKang has a professional team to do the design and development of cylinder filling and tracking management
1.Quality comes first.High cost-effective
2.Our products widely used in China energy enterprise,also oversea market.Goods are popular in LPG and energy industry.
3.We have rich experience for lpg gas filling and Cylinder tracking
4.Nice performance,well replace the traditional bar code tag,and our metal ceramic has great advantages than RFID tag and other types of tags.
Bar code tag's Performance
What we produce is a metal ceramic tag with QR code,one-dimensional code,not print bar code,or laser bar code,or paper tag.
It use corrosion resistant metal as matric and integrate barcode information(series No.,QR code)with cermaic galze when the tag goes into the high temperature oven.
The tag has following nice performance.
1. Big temperature resistance range,-40℃ to 800℃
2. Chemical corrosion resistance
3. Scratch resistance.This is the advantage compare with paper tag or laser tag.Even you use an knife to scratch the code on the tag,it can not be damaged.
4. Long life time.It has been approved could be used outdoor for more than 20 years.
5. UV protection
6. Good bendability,our metal ceramic tag could be used well on curvey surface.
Bar code tag's Characteristic
| Characteristic | |
| Item | Barcode |
| High Temperature Resistance | 800℃ |
| Low Temperature Resistance | -40℃ |
| Chemical Corrosion | Yes |
| Color | White Base, Black Barcode |
| UV Resistance | Yes |
| Scrap with An Art Knife Allowed | Scraping 10 times without damage |
| Unbreakable | Little bend is available |
| Life Time | At Least 20 Years |
Bar code tag's Function
e.g. Display information on APP about cylinder information
Benefits of using metal ceramic bar code tag
With our barcode tag and gas cylinder tracking software system,could realize:
Cylinder bar code tag application
Applications for tracking LPG cylinders, and other industries
Installation for cylinder bar code tag
Three methods:
- For New Cylinder by Welding
- For old cylinder by drilling and riveting
- Adhesive glue or 3M glue
Explanation of the Cylinder tracking system
The hardwares demanded for the system:
To track gas cylinders ,it needs.
Hardware- Bar code tag
Explosion-proof type PDA
Smart phone
Wireless data base
Icloud server
Software- Cylinder tracking platform
Cylinder tracking mobile APP
Our cooperator
Background - Why should we manage our gas cylinders?
Because cylinders are our precious assets.
