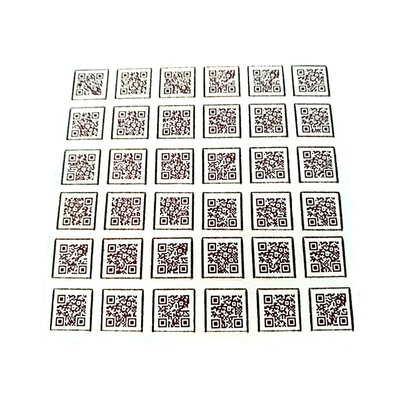

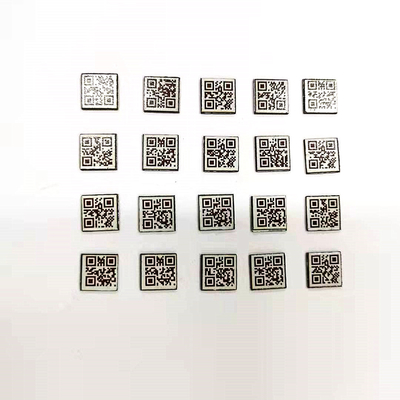

Gas Cylinder Valve Track Mini Barcode 10mm X 10mm

Gas Cylinder Valve Track Mini Barcode 10mm X 10mm

Product Details:

Place of Origin: Changzhou, China
Brand Name: XiangKang
Certification: ISO9001:2015,CNEX,ATEX
Model Number: cylinder valve bar code tag

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton Pack
Delivery Time: in a week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Cylinder Valve Bar Code Tag Life Time: 20 Years Outdoor
Hige Temperature Resistance: 800℃ Anti-UV: Yes
Chemical Resistance: Yes Tag Dimension: 35*53*1.2 Mm
Color: Black And White Water Resistance: Yes
Anti-Burning: Yes Material: Metal Ceramic
Oil Resistance: Yes Heat Resistance: Yes
High Light:

Cylinder Valve Track Mini Barcode


Gas Mini Barcode Tag


10mm Barcode Label

Product Description

Why choose XiangKang electronic?


XiangKang has a professional team to do the design and development of cylinder filling and tracking management

1.Quality comes first.High cost-effective

2.Our products widely used in China energy enterprise,also oversea market

3.We have rich experience on gas filling and Cylinder tracking


XiangKang is the first leader solution supplier for Chinese Bureaus of Quality and Technical Supervision about LPG cylinder tracking and management,interlocking automatic filling scale and government supervision network platform.



Bar code tag's Characteristic

Item Barcode
High Temperature Resistance 800℃
Low Temperature Resistance -40℃
Chemical Corrosion Yes
Color White Base, Black Barcode
UV Resistance Yes
Scrap with An Art Knife Allowed Scraping 10 times without damage
Unbreakable Little bend is available
Life Time At Least 20 Years



Bar code tag's Performance


What we produce is a metal ceramic tag with QR code,one-dimensional code,not print bar code,or laser bar code,or paper tag.


It use corrosion resistant metal as matric and integrate barcode information(series No.,QR code)with cermaic galze when the tag goes into the high temperature oven.
The tag has following nice performance.

1. Long life time.It has been approved could be used outdoor for more than 20 years.
2. Big temperature resistance range,-40℃ to 800℃
3. Scratch resistance.This is the advantage compare with paper tag or laser tag.Even you use an knife to scratch the code on the tag,it can not be damaged.
4. Chemical corrosion resistance
5. UV protection
6. Good bendability



Bar code tag's Function

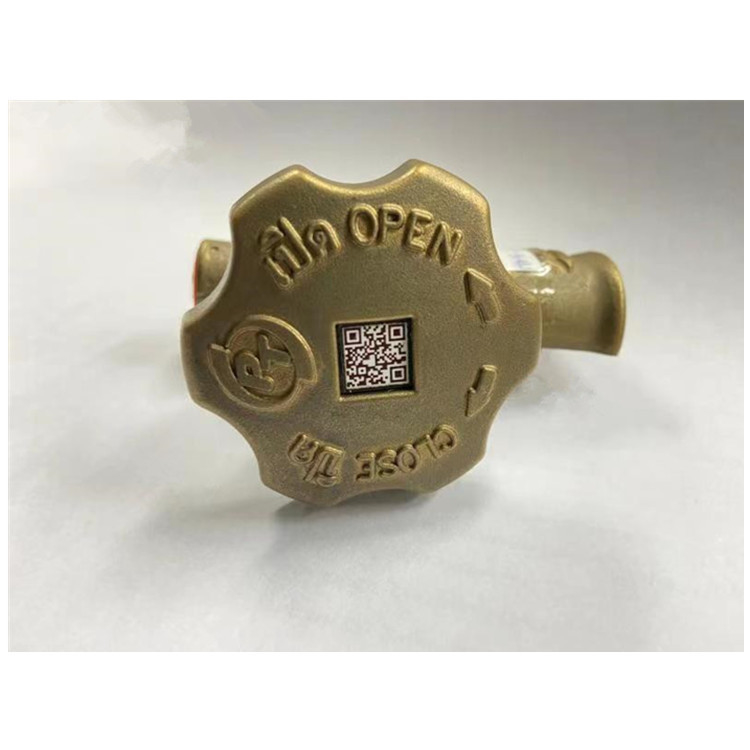

One Cylinder with unique ID, Once Installation Permanent Use,Life Time at Least 20 Years



Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 0
Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 1
Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 2


One-dimensional code
>cylinder ID,cylinder file
>Internal Filling data management
>Cylinder Tracking
>External Distribution managemen


QR Code
>Link to website
>Scan QR code to place gas order
>Enterprise information publicity
The function for one-dimensional code is to show the barcode number for gas cylinder,that is,one cylinder with a unique barcode number,and each bar code number carries the specific file for the cylinder.
Such as cylinder Valve number,cylinder Series No.,Cylinder manufacturer,Manufacture date,gas Cylinder expiry Date,Last inspection date,gas cylinder's tare weight and etc.
The function for two-dimensional code/QR code,always it shows with a link,the content in the link could be a APP for LPG gas order or industrial gas order,or it is your company page,or just a picture of your product,or a enterprise information publicity,or cooking gas operation instruction and etc.
Device/Scanner to scan the QR code
The permanent barcode could be scanned by PDA or handle scanner:
In gas filling plant: use explosion-proof type PDA for Hazardous area Zone
For other sites: Smartphones.
Cylinder information


 e.g. Display information on APP about cylinder information

   Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 3


Benefits of using metal ceramic bar code tag


With our barcode tag and gas cylinder tracking software system,could realize:

• Reduce costs by having to replace fewer gas cylinders
• Easily know the whereabouts of your entire cylinder fleet
• Track gas use & loss and analysis statistics
• Deploy your gas cylinder assets more effectively
• Quickly identify missing cylinders
• Record proof of delivery by capturing e-signatures

Cylinder bar code tag application

Applications for tracking LPG cylinders, and other industries

 Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 4

 Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 5


Installation for cylinder bar code tag

Three methods:

  • For New Cylinder by Welding
  • For old cylinder by drilling and riveting
  • Adhesive glue or 3M glue

Explanation of the Cylinder tracking system


The hardwares demanded for the system:


To track gas cylinders ,it needs.

Hardware- Bar code tag

                      Explosion-proof type PDA

                      Smart phone

                      Wireless data base

                      Icloud server


Software- Cylinder tracking platform

                    Cylinder tracking mobile APP


     Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 6


Our cooperator

   Gas Cylinder Valve Track Mini Barcode 10mm X 10mm 7

Background - Why should we manage our gas cylinders?


Because cylinders are our precious assets.
