Scratch Resistance Permanent Bar Code Tag UV Protection
Product Details:
| Place of Origin: | Changzhou, China |
| Brand Name: | Xiangkang |
| Certification: | ISO9001, CNEX, ATEX |
| Model Number: | LPG Cylinder Bar code Tag |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Carton Pack |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000pcs per month |
|
Detail Information |
|||
| Product Name: | LPG Cylinder Bar Code Tag | Life Time: | 20 Years Outdoor |
|---|---|---|---|
| Temperature Resistance: | -40℃~800℃ | Anti-UV: | Yes |

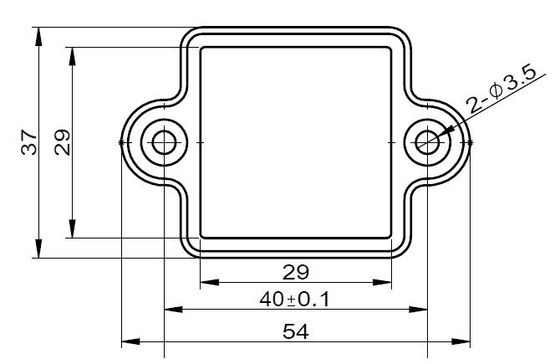

| Chemical Resistance: | Yes | Tag Size: | 35*53*1.2 Mm |
| Color: | Black And White | Scan Speed: | 1 Second |
| Bendability: | Good | Scratch Resistance: | Yes |
| Highlight: | Permanent Bar Code Tag,Scratch Resistance Bar Code Tag,UV Protection Bar Code Tag |
||
Product Description
XiangKang Permanent Bar Codes tag Digital Indentity UV protection scratch resistance fast read Brazil gas market accept.
By using PDA or Mobile to record and upload when deliver or exchange a cylinder. You can also track internal cylinder movements at your company using a dedicated smartphone app (which can read cylinder barcodes using the phone’s camera), you can access the related information using your smartphone app or a regular scanner.
The benefits you could gain by using barcode with the tracking system:
With XiangKang gas cylinder tracking software you can:
Reduce costs by having to replace fewer gas cylinders
Easily know the whereabouts of your entire cylinder fleet
Track gas use & loss and analysis statistics
Deploy your gas cylinder assets more effectively
Quickly identify missing cylinders
Record proof of delivery by capturing e-signatures
We successfully developed permanent barcode labels for gas cylinders, which use corrosion resistant metal as matrix and integrate barcode information with ceramic glaze.It’s designed to last outdoors for 20-30 years.
Start to track your lpg gas cylinder,let them all under your control,and well manage them with digital files not manual record.
Permanent Metal-ceramic Composite Barcode for Tracking LPG Cylinders
One Cylinder with unique ID, Once Installation Permanent Use, Life Time at Least 20 Years
| Characteristic | |
| Item | Barcode |
| High Temperature Resistance | 800℃ |
| Low Temperature Resistance | -40℃ |
| Chemical Corrosion | Yes |
| Color | White Base, Black Barcode |
| UV Resistance | Yes |
| Scrap with An Art Knife Allowed | Scraping 10 times without damage |
| Unbreakable | Little bend is available |
| Life Time | At Least 20 Years |
e.g. Display information on APP about cylinder information
- 1) Outstanding high temperature 800℃ resistance
- 2) Low temperature resistance -40℃
- 3) Scraping 10 times with an art knife without damage to the surface
- 4) Resistance to chemical reagent corrosion, penetration of acetone for half an hour, wipe with wire ball for removal without damage
- 5) White base, black barcode, easy to read
- 6) Excellent image resistance to damaging UV exposure, 20 years practice proof
- 7) Ceramic layer protects the image from chemical abrasion
- 8) Unbreakable ceramic technology, little bit bend is available
Applications for tracking LPG cylinders, and other industries
Comparison barcode between RFID
Material for cylinder tag is Ceramic-metal,It has some clear advantages over RFID.
Two methods:
- For New Cylinder by Welding:
- For old cylinder by drilling and riveting:
The hardwares demanded for the system:
- 1 x computer with software(internet or net)
- 1 x communication server
- 1 x wirelss base
- n x LPG filling scales
