Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG 120 Sim Card

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Scale Rated Power &Frequency: 220V 50/60Hz
Division: 50G Capacity: 2Kg-120Kg
Available Gas: LPG, Industrial Gas Accuracy: III
Pressure: 0~1.6Mpa Anti Explosion Grade: Ex Ib IICT4 Gb
Wireless Communication: Sim Card Module
High Light:

Wireless LPG Gas Cylinder Filling Machine

,

Electronic Gas Cylinder Filling Machine

,

50G Division Cylinder Filling Machine

Product Description

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division

Product Description

Electronic Ex-proof LPG Filling Scale With Sim Card Module Wireless Communication

  1. It is used in semi-automatic and fully automatic filling processes within filling station.
  2. The filling scales with Sim Card module and cyinder tracking system,

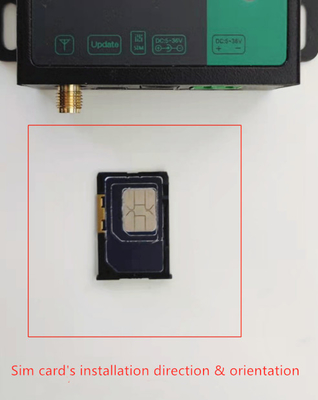

  3. it could transfer data via Sim Card directly, no need WIFI, communication devices any more...
  4. Even the scales are in the different filling stations, could easily track by mobile APP or computer website any time anywhere.
  5. Therefore have to meet high accuracy requirements for small filling stations to save cost and easier operation...Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 0
Performance parameters
Module S-TCS-YG-120 Sim Card
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof  Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz

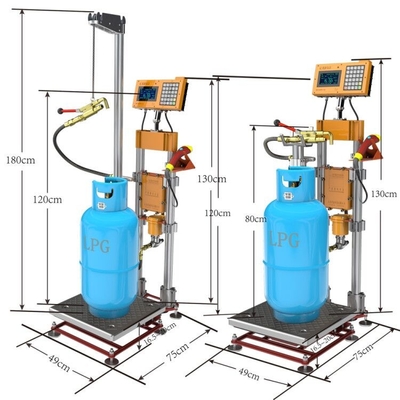

Product Details Show

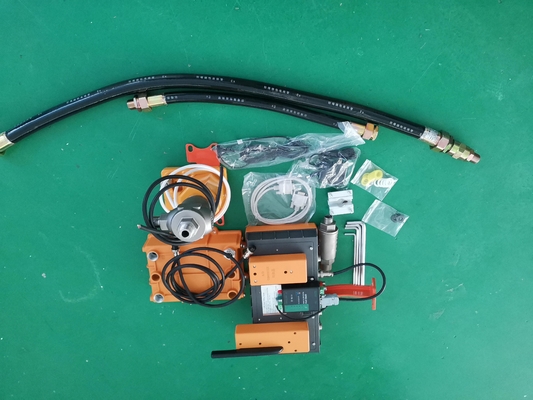

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 1

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 2

Products Application



Application in Africa Company:

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 3



Products Advantages
  • Quantitative filling,
  • Automatic cut off, .
  • Intrinsically safe explosion proof, safe and reliable
  • One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display
Interlocking Scanning Filling Process



The process of filling:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 4



2. Open the valve(pressure handle) and start filling



Electronic Wireless LPG Gas Cylinder Filling Machine 50G Division 5



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.
