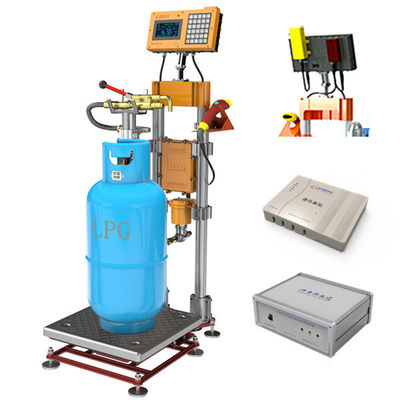

Data Transfer Wireless Propane Gas Filling Machine 50g Division

Data Transfer Wireless Propane Gas Filling Machine 50g Division

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: Propane Gas Filling Machine 2-180kg Rated Power &Frequency: 220V 50/60Hz
Available Industrial: Energy And Mining,Industrial Gas,LPG Industry Division: 50g
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Certificate: ATEX,CNEX,ISO9001:2015
Weighing Capacity: 2Kg-180Kg Package: Standard Carton Box
Filling Speed: High Speed And Reliable
High Light:

Wireless Propane Gas Filling Machine

,

Data Transfer Gas Filling Machine

,

50g Division Gas Filling Machine

Product Description


Product Description



XiangKang is a leader enterprise in LPG industry in China,we manufacture lpg filling machines and cylinder tag,LPG gas refilling plant,lpg skid sation,also software system.



Pneumatic filling head gas refill machine


We are a professional manufacturer for LPG filling scale,Cylinder tags,cylinder tracking,automatic gas filling scale,electric filling scale,intelligent filling machine,interlocking filling scale,Li-ion battery type filling scale,cooking gas filling,propane gas filling,bottled gas filling,explosive proof filling scale,liquefied petroleum gas filling machine,industrial gas filling,cylinder valves,lpg filling weighing scale,lpg filling weighing machine,Propane Fueling Stations,double nozzle filling scale,cylinder bar code tags,cylinder label,pet care tags,asset tracking bar code tags and etc.





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz




Interlocking Scanning Filling Process



Here are the process of filling bellow for clearer idea,very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Data Transfer Wireless Propane Gas Filling Machine 50g Division 0



2. Open the valve(pressure handle) and start filling



Data Transfer Wireless Propane Gas Filling Machine 50g Division 1



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.


Product Details Show

We do module design for our liquid petroleum gas filling machine.It will be much easier for maintenance.

The modules for filling scales are:Soldenoid valve, power box, hanging barrel,tools, display, LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals

Data Transfer Wireless Propane Gas Filling Machine 50g Division 2



Products Application



Our gas cylinder weighing scale have been well used of LPG refill,liquid chlorine refill,liquefied gas refill,CO2 gas filling,and other industrail gas refill,not only for home use cooking gas filling,also for BBQ cylinder gas filling,and some LPG gas plant.

Data Transfer Wireless Propane Gas Filling Machine 50g Division 3

Data Transfer Wireless Propane Gas Filling Machine 50g Division 4

         Data Transfer Wireless Propane Gas Filling Machine 50g Division 5



Products Advantages
  • ATEX,CNEX,ISO9001:2015 certificate
  • Electronic power type and battery type
  • Different filling module,net filling,total filling,standard filling type
  • Filling scale can be with different nozzles,double nozzles is available
  • Electronic power type and battery type
  • Wireless data transfer supported.While you are doing gas refill,the filling data will be transfered to your computer timely and automatically.
  • Gas filling software system is available.
  • And etc.
Our Cooperators
   Data Transfer Wireless Propane Gas Filling Machine 50g Division 6

Exhibitions
Our company attend several internation exhibitions related LPG and energy industry.Such as.
LPG WEST AFRICA 2019 FORUM & EXHIBITION-NIGERIA
ASIA PACIFIC LPG Expo 2019 VIETNAM
5th ASIA LPG SUMMIT 2018-BANGLADESH
LPG PROFESSIONAL FAIR JAPAN
And etc.
Data Transfer Wireless Propane Gas Filling Machine 50g Division 7
