Product Details:

Place of Origin: China
Brand Name: XiangKang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: Propane Lpg Gas Filling Scale Division: 50g
Available Industrial: Gas Station,energy Project,home Use,lpg Industry Accuracy: Class 3
Pressure: 0~1.6Mpa Ex-proof Grade: Ex Ib IICT4 Gb
Warranty: 12 Months Min. Weighing: 2Kg
Max. Weighing: 120Kg & 180Kg Rated Power &Frequency: 220V 50/60Hz
High Light:

Class 3 Cylinder Filling Machine

,

120Kg Weighing LPG Filling Machine

,

Propane Lpg Gas Filling Scale

Product Description



Product Description



LPG filling scales(Battery type filling machine and electronic power filling machine)

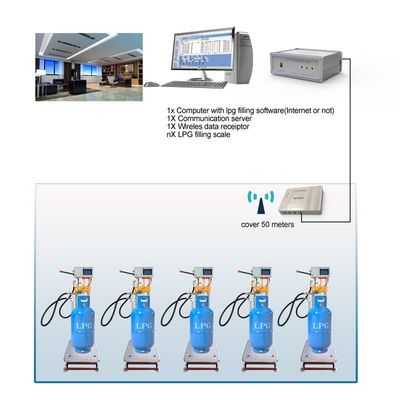

Our lpg filling scales with ATEX,CNEX,ISO9001:2015 certificate,high accuracy and explosion-proof,it will be automatically cut-off once it meet the set amount.And another advantage,it has wireless module,for data collect and transfer to software.

Filling stations have a large amount of complex materials need records.

In a LPG filling station or plant,liquefied petroleum gas needs to weight,cylinders need to tracking.



Choosing a filling machine can be a very simple task. You could easily be able to find a filling machine that fits you by narrowing down your choices depending on what you want to be filled.Our LPG cylinder management system is designed specially to solve the problems according in smart & effective way, also low cost.



Here is the details about one hardware----LPG filling scale for the tracking system:





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz






Interlocking Scanning Filling Process





Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:



1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Class 3 LPG Gas Cylinder Filling Machine Propane Lpg Gas Filling Scale 0



2. Open the valve(pressure handle) and start filling



Class 3 LPG Gas Cylinder Filling Machine Propane Lpg Gas Filling Scale 1



3. After filling, the data will be transmitted into software system timely and automatically. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.






Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display,LED screen LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals.

Class 3 LPG Gas Cylinder Filling Machine Propane Lpg Gas Filling Scale 2



Products Application



Application in Industial Gas:

Class 3 LPG Gas Cylinder Filling Machine Propane Lpg Gas Filling Scale 3



Products Advantages





Advantages

1.

Quantitative filling

2.

Automatic cut off

3.

Intrinsically safe explosion proof, safe and reliable

4.

One key setting

5.

Easy and convenient

6.

Friendly Keyboard

7.

One key operation

8.

Large screen OLED display
