Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa

Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Machine Industrial Gas Rated Power &Frequency: 220V 50/60Hz
Division: 50G Available Industrial: Energy And Mining, Industrial Gas
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Warranty: 12 Months
Min. Weighing: 2Kg Max. Weighing: 120Kg & 180Kg
High Light:

120kg LPG Cylinder Filling Machine


1.6Mpa LPG Cylinder Filling Machine


Class 3 Gas Cylinder Filling Machine

Product Description

Product Description


In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....

There are the requirements to make it clearer and easier to manage.

An automatic filling scale is an important part of many industrial weighing applications.

Such cyilnders need to be accurated filled, or emptied the liquefied gases...


Choosing a filling machine can be a very simple task.

You could easily be able to find a filling machine that fits you by narrowing down your choices depending on what you want to be filled.

Our LPG cylinder management system is designed specially to solve the problems according in smart & effective way, also low cost.


Function of LPG cylinder filling machine

  • Super-bright digital tube display;

  • The total weight of filling and automatic filling peeling can be set;

  • Refuse to install when lower than the empty cylinder lower limit, Limit to install when meet the upper limit function to prevent acidental over loading, sound and light tips when finished filling;

  • Equipped with a operation function, the operator can enter employee ID password to filling;

  • Respectively accumulate, store different filling amount, filling cylinders, total weight and the amount of liquefied petroleum gas.


Here is the details about one hardware----LPG filling scale for the tracking system:



Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz



Interlocking Scanning Filling Process



Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:


1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa 0


2. Open the valve(pressure handle) and start filling


Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa 1

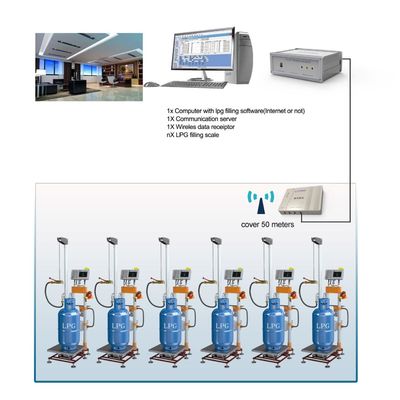

3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.


4. The software system updates in real time and uploads the filling data to the network platform.



Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa 2


Products Application


Application in Industial Gas:

Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa 3

Products Advantages



Quantitative filling


Automatic cut off


Intrinsically safe explosion proof, safe and reliable


One key setting


Easy and convenient


Friendly Keyboard


One key operation


Large screen OLED display


Our Cooperators
Explosion Proof 120kg LPG Gas Cylinder Filling Machine 1.6Mpa 4

Q1: Are you manufacturer?
A: Yes. We are manufacturing and exporting experience since 2002. We are proud to be the leader in this industry in China.


Q2: What is the MOQ?

1 set


Q3: How is your warranty?
A: 12 months trouble-free warranty. During warranty period, electric parts are covered with warranty. Users send back defective

parts and we send the new one for replacement. Warranty can be up to 3 years if you apply for the warranty extending plan.

For more information, please feel free to contact our sales people.


Q4: How is your technical support?
A: We provide 12 months trouble-free warranty and lifetime online support through Whatsapp/ Skype/ Wechat/ Email /

Remote Assistant- Teamviewer.
