Intelligent Interlocking LPG Cylinder Filling Machine 120Kg

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Bottled Gas Filling Scale Rated Power &Frequency: 220V 50/60Hz
Division: 50G Available Industrial: Energy And Mining,Industrial Gas,LPG Industry
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Certificate: ATEX,CNEX,ISO9001:2015
Weighing Capacity: 2Kg-120Kg Or 2Kg-180Kg Package: Standard Carton Box
High Light:

Intelligent Interlocking LPG Cylinder Filling Machine

,

120Kg c Cylinder Filling Machine

,

1.6Mpa 1.6Mpa Cylinder Filling Machine

Product Description


Product Description



lpg cooking gas bottle filling scales


We are a professional manufacturer for LPG filling scale,Cylinder tags,cylinder tracking,automatic gas filling scale,electric filling scale,intelligent filling machine,interlocking filling scale,Li-ion battery type filling scale,cooking gas filling,propane gas filling,bottled gas filling,explosive proof filling scale,liquefied petroleum gas filling machine,industrial gas filling,cylinder valves,lpg filling weighing scale,lpg filling weighing machine,Propane Fueling Stations,double nozzle filling scale,cylinder bar code tags,cylinder label,pet care tags,asset tracking bar code tags and etc.





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz




Interlocking Scanning Filling Process



Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 0



2. Open the valve(pressure handle) and start filling



Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 1



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.


Product Details Show

We do module design for our liquid petroleum gas filling machine.It will be much easier for maintenance.The modules for filling scales are:Soldenoid valve, power box, hanging barrel,tools, display, LPG pipes, cable pipes, support rod,scale platform, scanner and holder, seals

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 2

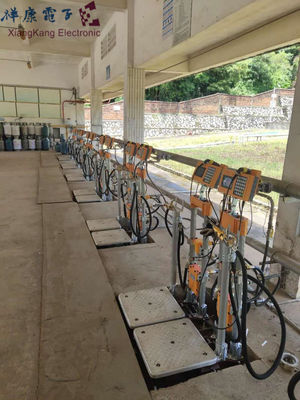

Products Application



Our gas cylinder weighing scale have been well used of LPG refill,liquid chlorine refill,liquefied gas refill,CO2 gas filling,and other industrail gas refill.

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 3

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 4

Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 5



Products Advantages
  • ATEX,CNEX,ISO9001:2015 certificate
  • High accuracy and explosion-proof
  • Automatically cut-off,once it reach the setting filling amount
  • Wireless data transfer is available,that means you could collect filling data timely and automatically when you do gas filling.
  • Electronic power type and battery type
Our Cooperators
Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 6
Exhibitions
Our company attend several internation exhibitions related LPG and energy industry.Such as.
LPG WEST AFRICA 2019 FORUM & EXHIBITION-NIGERIA
ASIA PACIFIC LPG Expo 2019 VIETNAM
5th ASIA LPG SUMMIT 2018-BANGLADESH
And etc.
Intelligent Interlocking LPG Cylinder Filling Machine 120Kg 7
