ISO9001 Unique ID Little Bend PDA Cylinder Barcode

ISO9001 Unique ID Little Bend PDA Cylinder Barcode

Product Details:

Place of Origin: Changzhou, China
Brand Name: Xiangkang
Certification: ISO9001, CNEX, ATEX
Model Number: LPG Cylinder Barcode

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: USD 0.35-0.42/pc
Packaging Details: Standard Export Carton Pack
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Get Best Price Contact Now

Detail Information

Material: Metal Ceramic Composite Color: White Base, Black Code
Durable: 20 Years Outdoor Temperature Resistance: -40℃ ~ 800℃
UV Resistance: Yes Chemical Resistance: Yes
Unbreakable: Little Bend Available Size: 35*53*1.2 Mm
Furnace Resistance: Yes
High Light:

PDA Cylinder Barcode

,

UID Cylinder Barcode

,

LPG qr code mobile

Product Description

ISO9001 Unique ID Little Bend PDA Cylinder Barcode

Product Description
Permanent Glaze Steel Barcode for Tracking LPG Cylinders

One Cylinder with unique ID, Once Installation Permanent Use, Life Time at Least 20 Years



The typical strength of the barcode:



Put on the collar to sure cylinder in normal use.

Not obstruct cylinder stacking

Not be easily removed/tampered

Long term resistance to UV

Resistance to caustic soda

Resistance to shot blasting and furnace (900 degC)

Resistance to keep reading characteristics to scratches

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 0



Characteristic
Item Barcode
High Temperature Resistance 800℃
Low Temperature Resistance -40℃
Chemical Corrosion Yes
Color White Base, Black Barcode
UV Resistance Yes
Scrap with An Art Knife Allowed Scraping 10 times without damage
Unbreakable Little bend is available
Life Time At Least 20 Years



Product Details Show



ISO9001 Unique ID Little Bend PDA Cylinder Barcode 1

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 2

Main Functions

 ISO9001 Unique ID Little Bend PDA Cylinder Barcode 3

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 4

Cylinder Information

 e.g. Display information on APP about cylinder information



ISO9001 Unique ID Little Bend PDA Cylinder Barcode 5



Product Features
  • 1) Outstanding high temperature 800℃ resistance
  • 2) Low temperature resistance -40℃
  • 3) Scraping 10 times with an art knife without damage to the surface
  • 4) Resistance to chemical reagent corrosion, penetration of acetone for half an hour, wipe with wire ball for removal without damage
  • 5) White base, black barcode, easy to read
  • 6) Excellent image resistance to damaging UV exposure, 20 years practice proof
  • 7) Ceramic layer protects the image from chemical abrasion
  • 8) Unbreakable ceramic technology, little bit bend is available

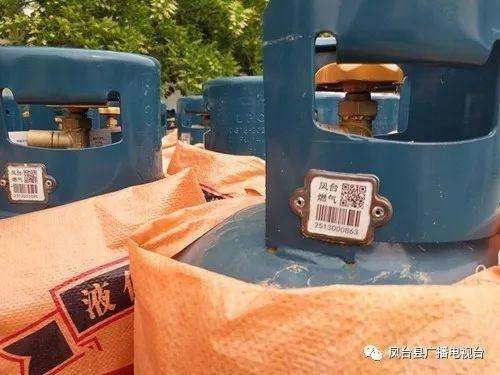

Products Application

Applications for tracking LPG cylinders, and other industries

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 6

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 7

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 8

Barcode VS RFID

Comparison barcode between RFID

Material for cylinder tag is Ceramic-metal,It has some clear advantages over RFID.

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 9



Item
Permanent cylinder tag
RFID
Life time
20years
2-5years
High&Low temperature resistance
-40~800℃
-20~220℃
Reading speed
One by one
Batch read,but not stable
Cost
low
high
Reader
PDA or mobile phone
Special reader
Cylinder Renewal Process
No need take barcode away
Must take down and packing in sequence
Successful case
XiangKang,Trackabout,BOC,
Linde
None



Installation Barcode

Two methods:

  • For New Cylinder by Welding:

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 10

  • For old cylinder by drilling and riveting:

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 11

ISO9001 Unique ID Little Bend PDA Cylinder Barcode 12

Explanation of the System

The hardwares demanded for the system:

  • 1 x computer with software(internet or net)
  • 1 x communication server
  • 1 x wirelss base
  • n x LPG filling scales



ISO9001 Unique ID Little Bend PDA Cylinder Barcode 13
