Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas

Product Details:

Place of Origin: Changzhou, China
Brand Name: Xiangkang
Certification: ISO9001, CNEX, ATEX
Model Number: Barcode Rectangle Label

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton Pack
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Rectangle Barcode Material: 304 Steel Glaze Composite
Durable: 20 Years Outdoor High Temperature Resistance: 800℃
UV Resistance: Yes Chemical Resistance: Yes
Bendablity: Good Color: White Base, Black Bar Code
Low Temperature Resistance: -40℃

Product Description

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas

Product Description
Permanent Metal-ceramic Composite Barcode for Tracking LPG CylindersOne Cylinder with unique ID, Once Installation Permanent Use, Life Time at Least 20 Years

Inventory control and the safety issues are involved with maintenance and testing. Whether they are to be used in a sterile, medical environment or on a welder's mobile service truck, they must be able to withstand tremendous pressures and rough handling. This barcode has been designed for and tested in numerous gas cylinder applications. Because of this label's ability to resist fading in UV light and be unaffected by moisture, it is an ideal method to permanently code gas cylinder, even reburning...
Characteristic
Item Barcode
High Temperature Resistance 800℃
Low Temperature Resistance -40℃
Chemical Corrosion Yes
Color White Base, Black Barcode
UV Resistance Yes
Scrap with An Art Knife Allowed Scraping 10 times without damage
Unbreakable Little bend is available
Life Time At Least 20 Years



Product Details Show



Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 0

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 1

Main Functions

 Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 2

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 3

Cylinder Information

 e.g. Display information on APP about cylinder information



Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 4



Product Features
  • 1) Outstanding high temperature 800℃ resistance
  • 2) Low temperature resistance -40℃
  • 3) Scraping 10 times with an art knife without damage to the surface
  • 4) Resistance to chemical reagent corrosion, penetration of acetone for half an hour, wipe with wire ball for removal without damage
  • 5) White base, black barcode, easy to read
  • 6) Excellent image resistance to damaging UV exposure, 20 years practice proof
  • 7) Ceramic layer protects the image from chemical abrasion
  • 8) Unbreakable ceramic technology, little bit bend is available
Products Application

Applications for tracking LPG cylinders, and other industries

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 5

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 6

Barcode VS RFID

Comparison barcode between RFID

Material for cylinder tag is Ceramic-metal,It has some clear advantages over RFID.

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 7



Item
Permanent cylinder tag
RFID
Life time
20years
2-5years
High&Low temperature resistance
-40~800℃
-20~220℃
Reading speed
One by one
Batch read,but not stable
Cost
low
high
Reader
PDA or mobile phone
Special reader
Cylinder Renewal Process
No need take barcode away
Must take down and packing in sequence
Successful case
XiangKang,Trackabout,BOC,
Linde
None



Installation Barcode

Two methods:

  • For New Cylinder by Welding:

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 8

  • For old cylinder by drilling and riveting:

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 9

Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 10

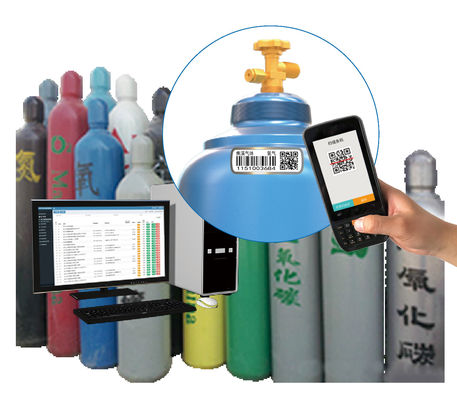

Explanation of the System

The hardwares demanded for the system:

  • 1 x computer with software(internet or net)
  • 1 x communication server
  • 1 x wirelss base
  • n x LPG filling scales



Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 11

Our Cooperators
Permanent Barcode High Temperature Resistance PDA Scanner For Liquefied Gas 12
