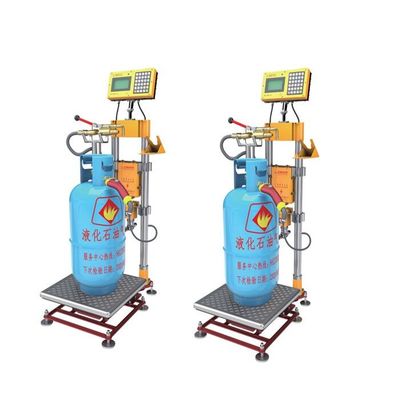

ATEX LPG Gas Cylinder Filling Machine

ATEX LPG Gas Cylinder Filling Machine

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV-180

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Carton Pack.
Delivery Time: 5~8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Cylinder Interlocking Filling Scale Application: Beverage, Chemical, Gas Station, LPG Cylinder, Gas Tank
Pack: Export Cartons Automatic Grade: Semi-automatic
Power Supply: 220V Explosive-proof: Ex Ib IIC T4 Gb
Div: 50g Capacity: 2kg~180kg
Kind: Gas Filling Display: LCD Display
High Light:

ATEX LPG Gas Cylinder Filling Machine


120kg LPG Gas Cylinder Filling Machine


120kg gas cylinder filling machine

Product Description

Product Description


One lpg filling station need 2* Scanner scale and 1* communication, server connect into computer and internet.
Filling data will be transferred into cloud timely.
Filling scale A,responsible for scan barcode,to catch the information:
1.When does cylinder come?
2.Weight of cylinder before filling
3.To record which cylinder
4.Remaining gas amount
Filling scale B,to scan the barcode after gas filling,to
catch the information:
1.Weight of after filling lpg
2.Which cylinder
LPG filling amount will be easily come out:
The weight B- weight A-remaining amount =LPG filling amount
Performance parameters
Module S-TCS-YG-SV-120
Accuracy III
Capacity 2KG~120KG
Division value 50g
Operating pressure 0~1.6Mpa
Application Beverage, Chemical, gas station, LPG cylinder, Gas tank
Explosive-proof Ex ib IICT4 Gb
Rated Power & Frequency 220V 50/60Hz
Certificates CNEX, ATEX, ISO9001


Product Details


The detailed spare parts of the scale bellow for better ideas, including:


Spare Parts List
1.Support Rod 7.Hanging Barrel
2.LPG Pipe and Cable Pipe 8.Scale Platform
3.Ex-proof Power Box 9.Solenoid Valve
4.Wireless Transmitting 10.Filling Gun
5.Scanner and Holder 11.Display
6.Seals 12.AD adaptor

ATEX LPG Gas Cylinder Filling Machine 0


Product Application


  • Semi-automatic filling scale for accurate filling LPG, better control of LPG and cylinder in smart way, eliminate paper work...

ATEX LPG Gas Cylinder Filling Machine 1


Suitation That Refuse To Fill


Only qualifed gas cylinder will be filled.

The suiations which the filling scale refuses to fill if not qualify, to ensure the safety usage of LPG and better tracking the cylinders.

Such as filling permit expires, cylinders without barcode, expired and scrapped cylinder, without achive, blacklist cylinder...

ATEX LPG Gas Cylinder Filling Machine 2
