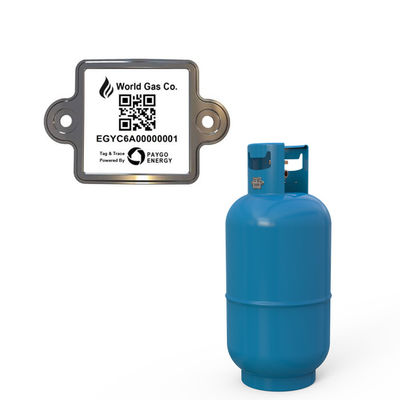

• Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile
  • Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile
  • Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile
  • Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile
Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile

Product Details:

Place of Origin: Changzhou, China
Brand Name: Xiangkang
Certification: ISO9001, CNEX, ATEX
Model Number: LPG Cylinder Bar code Tag

Payment & Shipping Terms:

Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton Pack
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Cylinder Bar Code Tag Life Time: 20 Years Outdoor
Hige Temperature Resistance: 800℃ Anti-UV: Yes
Chemical Resistance: Yes Tag Size: 35*53*1.2 Mm
Color: Black And White Scan Speed: 1 Second

Product Description

Product Description


By using PDA or Mobile to record and upload when deliver or exchange a cylinder. You can also track internal cylinder movements at your company using a dedicated smartphone app (which can read cylinder barcodes using the phone’s camera), you can access the related information using your smartphone app or a regular scanner.

Eliminate transposition errors caused from manual transposition of ships and returns on the delivery ticket, and reduce invoicing errors caused by loss or theft at customer facilities. Additionally, they help automate counting, filling and checking of product compliance.

Permanent Metal-ceramic Composite Barcode for Tracking LPG Cylinders

One Cylinder with unique ID, Once Installation Permanent Use, Life Time at Least 20 Years

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 0



Characteristic
Item Barcode
High Temperature Resistance 800℃
Low Temperature Resistance -40℃
Chemical Corrosion Yes
Color White Base, Black Barcode
UV Resistance Yes
Scrap with An Art Knife Allowed Scraping 10 times without damage
Unbreakable Little bend is available
Life Time At Least 20 Years



Product Details Show



Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 1

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 2

Main Functions

 Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 3

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 4

Cylinder Information

 e.g. Display information on APP about cylinder information



Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 5



Product Features
  • 1) Outstanding high temperature 800℃ resistance
  • 2) Low temperature resistance -40℃
  • 3) Scraping 10 times with an art knife without damage to the surface
  • 4) Resistance to chemical reagent corrosion, penetration of acetone for half an hour, wipe with wire ball for removal without damage
  • 5) White base, black barcode, easy to read
  • 6) Excellent image resistance to damaging UV exposure, 20 years practice proof
  • 7) Ceramic layer protects the image from chemical abrasion
  • 8) Unbreakable ceramic technology, little bit bend is available
Products Application

Applications for tracking LPG cylinders, and other industries

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 6

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 7

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 8

Barcode VS RFID

Comparison barcode between RFID

Material for cylinder tag is Ceramic-metal,It has some clear advantages over RFID.

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 9



Item
Permanent cylinder tag
RFID
Life time
20years
2-5years
High&Low temperature resistance
-40~800℃
-20~220℃
Reading speed
One by one
Batch read,but not stable
Cost
low
high
Reader
PDA or mobile phone
Special reader
Cylinder Renewal Process
No need take barcode away
Must take down and packing in sequence
Successful case
XiangKang,Trackabout,BOC,
Linde
None



Installation Barcode

Two methods:

  • For New Cylinder by Welding:

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 10

  • For old cylinder by drilling and riveting:

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 11

Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 12

Explanation of the System

The hardwares demanded for the system:

  • 1 x computer with software(internet or net)
  • 1 x communication server
  • 1 x wirelss base
  • n x LPG filling scales



Xiangkang LPG Cylinder Bar Code Label Digital Indentity Simply Scanning By PDA or Mobile 13
