120kg Lpg Cylinder Filling Equipment Wireless Communication

120kg Lpg Cylinder Filling Equipment Wireless Communication

Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Refilling Scale Rated Power &Frequency: 220V 50/60Hz
Division: 50G Available Industrial: Energy And Mining, Industrial Gas, Beverage
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Warranty: 1 Year
Capacity: 120Kg Package: Carton
Certification: ATEX,CNEX, ISO9001
High Light:

120kg Lpg Cylinder Filling Equipment

,

Wireless Lpg Cylinder Filling Equipment

,

50G Division Lpg Cylinder Filling Equipment

Product Description


Benefits for LPG Filling Scale Machine

In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....

You could easily be able to find a filling machine that fits you by narrowing down your choices depending on what you want to be filled.

There are the requirements to make it clearer and easier to manage. Choosing a filling machine can be a very simple task.  .



An automatic filling scale is an important part of many industrial weighing applications. Such cyilnders need to be accurated filled, or emptied the liquefied gases.. There are many benefits using filling scale.



Benefis for Using Automatic Filling Scale:

  1. Higher Production Speeds,
  2. Reliability,
  3. Consistency,
  4. Simple Controls,
  5. Simple Controls,
  6. Lower Operator Interaction,
  7. Upgradeable Machinery
Product Description





The cylinder tracking system dats is easily interfaced with automatic onveyors wireless, etc. This machine offers an ideal way to automate container filling, consists of almost no moving parts and is very easy to set up as well as clean. Change over from product to product is accomplished quickly and easily.



Here is the details about one hardware----LPG filling scale for the tracking system:





Performance parameters

Module S-TCS-YG-SV-120
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz





Interlocking Scanning Filling Process





Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

120kg Lpg Cylinder Filling Equipment Wireless Communication 0



2. Open the valve(pressure handle) and start filling



120kg Lpg Cylinder Filling Equipment Wireless Communication 1



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.






Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

120kg Lpg Cylinder Filling Equipment Wireless Communication 2

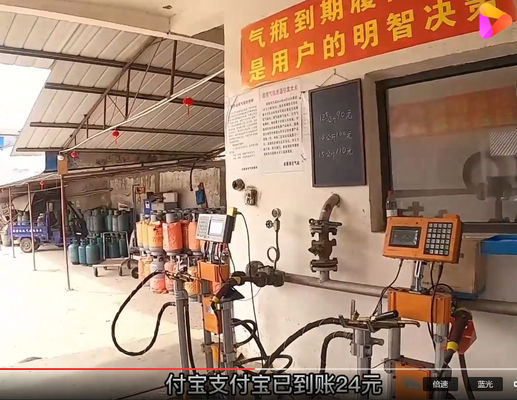

Products Application



Application in LPG(liquelified petroleum gas):

120kg Lpg Cylinder Filling Equipment Wireless Communication 3



Products Advantages
  • Quantitative filling
  • Automatic cut off
  • Intrinsically safe explosion proof, safe and reliable
  • One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display
Our Cooperators
120kg Lpg Cylinder Filling Equipment Wireless Communication 4
