Product Details:

Place of Origin: China
Brand Name: Xiangkang
Certification: ATEX, CNEX, ISO9001
Model Number: S-TCS-YG-SV

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Carton Pack, Each Set Packed in 4 CTNS
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 Sets per month
Get Best Price Contact Now

Detail Information

Product Name: LPG Filling Machine Acetylene Gas Rated Power &Frequency: 220V 50/60Hz
Division: 50G Available Industrial: Energy And Mining, Industrial Gas
Accuracy: Class 3 Pressure: 0~1.6Mpa
Ex-proof Grade: Ex Ib IICT4 Gb Warranty: 12 Months

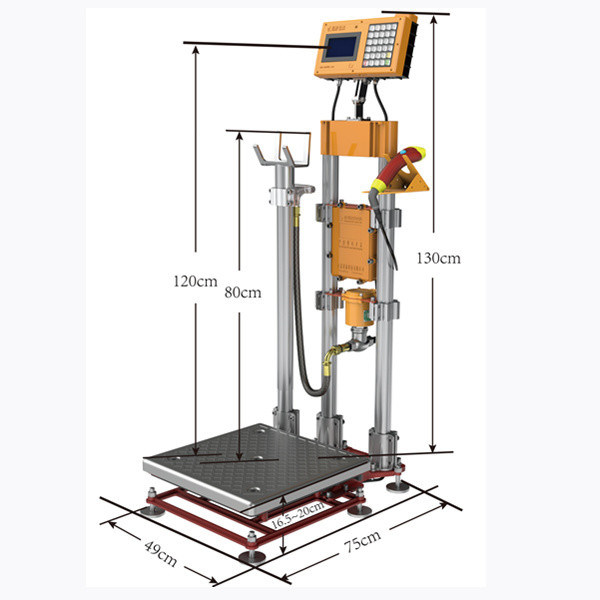

Capacity: 2Kg-120kg Size: 130*49*75cm
High Light:

Interlocking Scanning Cylinder Filling Scale

,

Acetylene Gas Cylinder Filling Scale

,

CNEX Cylinder Filling Scale

Product Description


Product Description



In LPG filling stations or plants, the LPG needs to weight, cylinders need to tracking....

There are the requirements to make it clearer and easier to manage.



Our LPG cylinder management system is designed to solve the problems according in smart and effective way.

And also competitive investment.



Here is the details about one hardware----LPG filling scale for the tracking system:

Interlocking Scanning Cylinder Filling Scale 0





Performance parameters

Module S-TCS-YG-SV-180
Accuracy III
Min. & Max. weighing 2KG-120KG
Certificates CNEX, ATEX, ISO9001
Div. 50g
Operating pressure 0~1.6Mpa
Suitable gas LPG
Ex-proof Ex ib IICT4 Gb
Power Supply 220V
Rated Frequency 50/60Hz






Interlocking Scanning Filling Process





Don't know how to use the filing scale, do not worry.

Here are the process of filling bellow for clearer idea, very simple to operate according the steps:



1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)

Interlocking Scanning Cylinder Filling Scale 1



2. Open the valve(pressure handle) and start filling



Interlocking Scanning Cylinder Filling Scale 2



3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.



4. The software system updates in real time and uploads the filling data to the network platform.






Product Details Show

Detailed spare parts of LPG filling scale, including:

Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,

scale platform, scanner and holder, seals

Interlocking Scanning Cylinder Filling Scale 3



Products Application



Application in Industrial Gas:

Interlocking Scanning Cylinder Filling Scale 4



Products Advantages
  • Quantitative filling
  • Automatic cut off
  • Intrinsically safe explosion proof, safe and reliable
  • One key setting, easy and convenient ,Friendly Keyboard, one key operation, large screen OLED display
Benefits of Using Filling Scale



​Why should you need automatic filling scale?

Filling stations have a large amount of complex materials need records.Our filling scale can help you develop an industrial weighing system for your filling operation that streamlines your workflow, delivers a fast and efficient measurement, and feeds data into any organization or record system you need. Our scales interface with a wide range of technology, and we can provide whatever digital or analog data your filling station requires. We can help you reproduce a formula with mechanical precision, and help you weed extraneous costs out of your production line.

Here are the benefits:

Benefit 1
  • Higher Production Speeds
Benefit 2
  • Reliability
Benefit 3
  • Consistency
Benefit 4
  • Versatility
Benefit 5
  • Simple Controls
Benefit 6
  • Lower Operator Interaction
Benefit 7
  • Upgradeable Machinery
